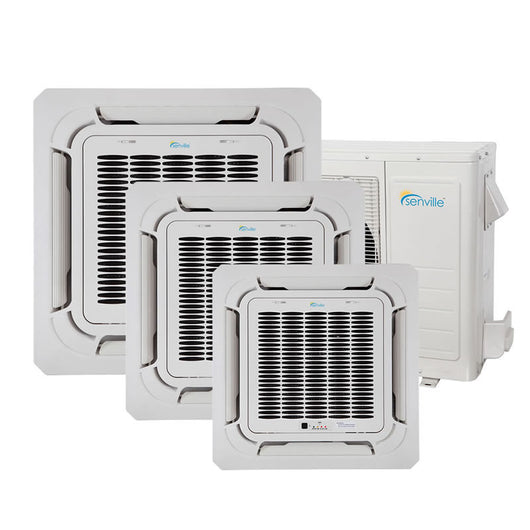

Senville Ceiling Cassette 36000 BTU 22 Seer Tri Zone 12K/12K/12K Air Conditioner Heat Pump - A&A Mini Splits

Senville Ceiling Cassette 36000 BTU 22 Seer Tri Zone 12K/12K/12K Air Conditioner Heat Pump

$3,900.00 $3,000.00 Sale

Product Description

This 36000BTU Tri Zone Ceiling Cassette Air Conditioner by Senville is one of the most advanced and high-end split units on the market. Providing you with a variety of features including, SEER 22.5, with Air Conditioner & Heat Pump, Turbo Mode, Ionizing Air Filter, Dehumidification, Timer Function, Follow Me Function and much more.

BTU Sizing Chart for Mini Split Systems

Check out our square footage and BTU comparison chart below. The following table is for individual zones, for a multi-zone, combine the total BTU’s needed to establish the overall BTU values of the system.

Area To Be Cooled Capacity Needed (BTUs Per Hour)
150 to 250 square feet 6,000 BTUs
250 to 300 square feet 7,000 BTUs
300 to 350 square feet 8,000 BTUs
350 to 400 square feet 9,000 BTUs
400 to 450 square feet 10,000 BTUs
450 to 550 square feet 12,000 BTUs
550 to 700 square feet 14,000 BTUs
700 to 1,000 square feet 18,000 BTUs
1,000 to 1,200 square feet 21,000 BTUs
1,200 to 1,400 square feet 23,000 BTUs
Up to 1,500 square feet 24,000 BTUs

Installation Kit & Accessories Included

sgtb-install-kit-mini-split.gifSenville air conditioners include a complimentary installation kit, designed to ease installation as well as minimize installation costs. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up. Many inferior split units, may not include these parts, which eventually adds to your costs. Our Senville models come equipped and ready for installation from the moment your arrive at your door, with minimal additional cost. WIRE IS NOT INCLUDED.

Key Product Features

  • 22.5 SEER
  • With Heat Pump (Up to -30C / -22F)
  • Energy Star Certified
  • Whisper Technology (Ultra Quiet)
  • Refrigerant Leak Detection
  • Inverter Technology
  • Silver Ion Filter (Anti-Microbial)
  • Vertical Swing Function
  • Built-In De-humidification Function
  • Follow Me Function (Remote with Built-In Thermostat)
  • Low Ambient Cooling (Up to -30C / -22F)
  • Self-Cleaning Mode
  • PTC Heat Belt and Pan
  • Bucket Free Outdoor Design
  • Self Diagnosis System



Technical Specifications
Model Number SENA/36MO/Z-IC
Style Ductless Mini Split AC With Heat Pump
Compressor Toshiba (GMCC)
Refrigerant R410A (Pre-Charged)
Refrigerant Pre Charge 25 Ft.
Cooling Capacity 36000 BTU
Heating Capacity 36000 BTU
Air Flow Varies According To Indoor Combination
Power Supply 208-230 V / 60 Hz, 1Ph
Input Power 880-4160W (Cooling) / 960-3795W (Heating)
Input Current N/A
SEER 22.5
EER 11.5
HSPF5 8.7
Sound Level 43/36/24 dB (Indoor) / 62.3dB (Outdoor)
Moisture Removal 1 L/hr
Min Operating Temperature – 30 C / –22 F
Net Weight 19 .84 Lbs (Indoor)/ 71 lbs (Outdoor)
Dimensions 22.44×22.44×10.24 in (Indoor Unit) 37.24×16.14×31.89 in (Outdoor Unit)
Warranty 2 Year on Parts / 7 Years on Compressor
Connection Wiring (Indoor/Outdoor) 16AWG-4 Stranded, Unshielded
Connection Wiring (Power Supply) 10-3 Guage
