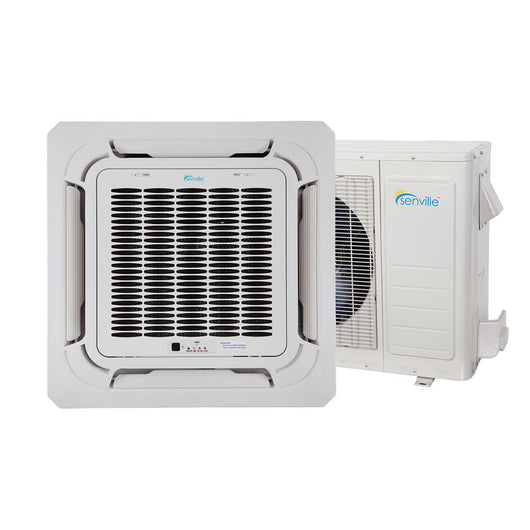

Senville Ceiling Cassette 12000 BTU 19 SEER Single Zone Mini Split AC & Heat Pump Remote - A&A Mini Splits

Senville Ceiling Cassette 12000 BTU 23 SEER Single Zone Mini Split AC & Heat Pump Remote

Regular price $1,550.00 $1,400.00 Sale


Senville offers high efficiency ductless mini split air conditioners, with compact design, powerful functions for an easy install in any room. Enjoy cooling in the summer and heating in the winter, at no additional cost. This system does not require costly ductwork, making the installation process simpler and less expensive. This mini split system is great for the whole home, additions, bedrooms, garages, businesses, restaurants and commercial spaces. Get perfect climate control, all the time!


  • Ultra High Efficiency AURA Collection (With ENERGY STAR)
  • DC Inverter Compressor -Variable speed compressor helping unit draw less electricity, produce less sound and gives you better room temperature control
  • Silver Ion Filter – Reduce allergens and bacteria in the air with a seven-stage air filtration system, to help eliminate odors, and up to 95% of smoke and pollen
  • With Heating – Can heat your home, bedroom, office, or store all year round, with heating and cooling up to -22F/-30C
  • Follow Me Technology - Built-in sensor technology follows the remote control's location and provides the most comfortable temperature to that area
  • Ultra Quiet Operation - Special cross-flow technology with a larger diameter helps to reduce noise levels without sacrificing airflow or cooling, making the system whisper quiet
  • Not Included: Electrical wiring needed for installation and drain pipe
  • Included: 16 Ft. Copper Line Set Kit for Each Indoor Handler
  • Mounting hardware included: Yes

BTU Sizing Chart for Mini Split Systems

Check out our square footage and BTU comparison chart below. The following table is for individual zones, for a multi-zone, combine the total BTU’s needed to establish the overall BTU values of the system.

Area To Be Cooled Capacity Needed (BTUs Per Hour)
150 to 250 square feet 6,000 BTUs
250 to 300 square feet 7,000 BTUs
300 to 350 square feet 8,000 BTUs
350 to 400 square feet 9,000 BTUs
400 to 450 square feet 10,000 BTUs
450 to 550 square feet 12,000 BTUs
550 to 700 square feet 14,000 BTUs
700 to 1,000 square feet 18,000 BTUs
1,000 to 1,200 square feet 21,000 BTUs
1,200 to 1,400 square feet 23,000 BTUs
Up to 1,500 square feet 24,000 BTUs

Key Product Features

  • 19 SEER (CEE Tier 3)
  • With Heat Pump (Up to -30C / -22F)
  • Energy Star Certified
  • Whisper Technology (Ultra Quiet)
  • Refrigerant Leak Detection
  • Inverter Technology
  • Silver Ion Filter (Anti-Microbial)
  • Vertical Swing Function
  • Built-In De-humidification Function
  • Follow Me Function (Remote with Built-In Thermostat)
  • Low Ambient Cooling (Up to -30C / -22F)
  • Self-Cleaning Mode
  • PTC Heat Belt and Pan
  • Bucket Free Outdoor Design
  • Self Diagnosis System

Technical Specifications

Model Number SENA-12HF-IC
Style Ductless Mini Split AC With Heat Pump  - Ceiling
Compressor Toshiba (GMCC)
Refrigerant R410A (Pre-Charged)
Cooling Capacity 11500 BTU
Heating Capacity 12000 BTU
Air Flow 380 H / 320 M / 260 L CFM
Power Supply 208-230 V / 60 Hz, 1Ph
Input Power 885W (cooling) / 925W (heating)
Input Current 3.81A (Cooling) / 4.22A (Heating)
SEER 19.5
EER 10
HSPF 8.2
Sound Level 51/46/40.5 dB (indoor unit) 54 dB (outdoor unit)
Moisture Removal
1.2 L/hr
Min Operating Temperature* – 20 C / -4 F
Net Weight

35.27 lbs (indoor unit) 74 lbs (outdoor unit)
22.44x22.44x10.24 in (indoor unit) 29.95x11.22x23.23 in (outdoor unit)
Warranty 2 Year on Parts / 7 Years on Compressor
