TOSOT 12,000 BTU 16 SEER Ductless Mini Split Single Zone with Heating 208-230V by GREE TW12HQ1C2D - A&A Mini Splits

TOSOT 12,000 BTU 16 SEER Ductless Mini Split Single Zone with Heating 208-230V by GREE TW12HQ1C2D

$1,209.60 $680.00 Sale

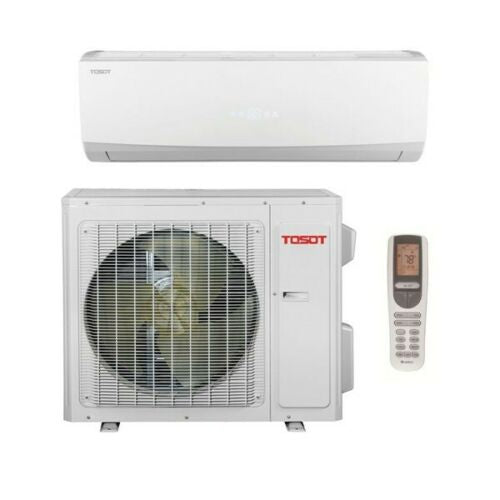

TOSOT TW12HQ1C2A Ductless Mini Split w/ Inverter Heat Pump, 12,000 BTU, SEER 16.0, 208-230 Volt, -4 Degrees Capability, Single Zone Includes Indoor Wall Unit and Outdoor Condenser, Line Sets Sold Separately
TOSOT is an HVAC equipment brand owned and manufactured by GREE Electric Appliances Company of Zhuhai (Est. 1991). TOSOT's product -line includes residential and commercial air conditioners, from ductless-split, single and multi-zoned, PTACs, window units and dehumidifiers to VRF (Variable Refrigerant Flow) units.

GREE is headquartered in GuangDong Province, the HVAC manufacturing capital in China. It's the largest residential air conditioner manufacturer. Globally, 1 in 3 Air Conditioners is manufactured by GREE.

FEATURES & BENEFITS

  • Multiple speed fan
  • Timer
  • I Feel mode
  • IR remote control
  • Adjustable airflow
  • Privacy lock mode
  • Sleep mode
  • Fahrenheit ° F / Celsius ° C
  • Self-diagnosis
  • High efficiency G-10 Inverter Technology
  • R410A refrigerant
  • Heat pump advantage
  • Low voltage start-up
  • Quiet operation
  • Intelligent defrost
  • Power failure mode
  • Intelligent pre-heating
  • Polymeric air filters
  • Wired Non-Programmable Controller (Optional)

    • PRODUCT SPECIFICATIONS

    COOLING

  • Cooling Rated Capacity: 12,000 BTU
  • Cooling Capacity Range: 3,753-12,500 BTU
  • Power Input (Max.): 1,300 W
  • SEER: 16.0
  • EER: 9.25

    HEATING AT 47-F

  • Rated Capacity: 13,000 BTU
  • Capacity Range: 3,924-14,400 BTU
  • Power Input Max: 1,250W
  • HSPF: 9.0
  • COP: 3.1

    HEATING AT 17-F

  • Rated Capacity: 8,100 BTU

    OPERATING RANGE

  • Cooling Max: 115-F
  • Cooling Min: 0-F
  • Heating Max: 75-F
  • Heating Min: -4-F

    REFRIGERANT PIPING DATA

  • Gas Pipe Size (OD): 3/8"
  • Liquid Pipe Size (OD): 1/4"
  • Connection Method: Flared
  • Factory Charge: 30.0oz.
  • Additional Charge: 0.2 oz/ft
  • Pre-Charge Length: 25'
  • Max Length: 66'
  • Min Length: 10'
  • Max Elevation: 33'

    ELECTRICAL DATA

  • Normal Voltage: 208/230/1/60Hz
  • Voltage Range: 187-253V
  • MCA: 9.0A
  • MOCP/Breaker Size: 15A
  • Main Power Wire Size; 14-2 AWG

    INDOOR UNIT DATA

  • Fan Motor Type: Cross-Flow
  • Fan Motor Output Power: 20W
  • FLA: 0.3A
  • Airflow Cooling Wet (L/H): 194/400 CFM
  • Airflow Heating Dry (L/H): 194/400 CFM
  • Cooling Sound Pressure Level (Min/Max): 29/45 db(a)
  • Heating Sound Pressure Level (Min/Max): 29/45 db(a)
  • De-humidification: 2.96 pts/hour

    OUTDOOR UNIT DATA

  • Compressor Type: DC Inverter Driven Rotary
  • Compressor RLA: 6.6A
  • Refrigerant Type: R410A
  • Fan Motor Output Power: 30W
  • Fan Motor FLA: 0.37A
  • Sound Pressure (Cooling/Heating): 53/53 db(a)

    DIMENSIONS/WEIGHTS

  • Indoor Wall Unit (WxHxD) in: 33.3 x 11.4 x 8.3
  • Outdoor Wall Unit (WxHxD) in: 30.6 x 21.3 x 11.3
