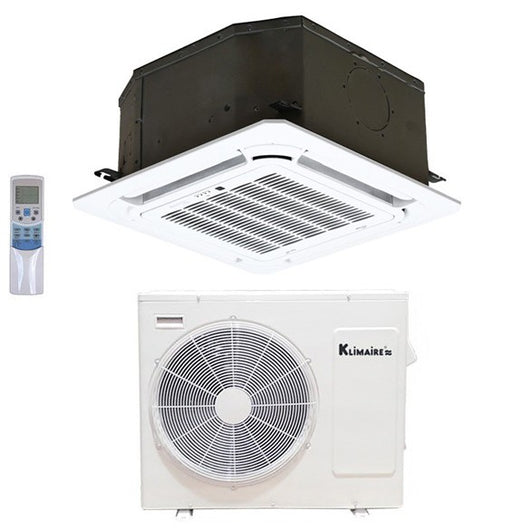

Klimaire 12,000 BTU 21.5 SEER AC Heat Ceiling Cassette 15FT Kit 220V Single Zone KSIE012-TIR12-H2

Regular price $1,500.00 $1,700.00 Sale


KTIR12-H2 | Indoor Unit

Klimaire recessed compact ceiling cassettes are discrete and elegant with a very low profile only a flush grille showing on the ceiling. They provide cooling and heating capacity with a 360º distribution with the latest fan technology, providing comfort to every corner of the room. They extend the application area beyond the zone they are located via optional flex duct to an adjacent room. The off-white grille blends with any ceiling.

* Compact cassettes fit into standard 24”x24” ceiling grid. * Six-inch supply duct optional side connections to provide air to an adjacent room. * Flexible installation with built-in condensate pump * Fresh air intake design 2.5” φ * Remote Control -Unit comes with a smart remote control that allows the user to set custom control parameters. A wall remote holder is included. * Total comfort – 3D air flow technology distribute air evenly throughout the room, different flap angles provide better air circulation for either heating or cooling, Silence operation enables the system to work in low frequency and indoor unit brings faint breeze, reduces noise level and creates a quiet and comfortable room for applications where noise reduction is vital. * Dehumidification-The unit efficiently dehumidifies with its dry mode function without changing the room temperature.Sleep Mode-Helps to maintain the most comfortable temperature for a deep sleep and save more energy.Self-diagnosis – Microprocessor in the main electronic board performs a self-diagnostics and displays error codes to make maintenance simple.Auto swing louver – The auto swing Louver function ensures that the air direction corresponds to the mode selected. * Auto-restart - After a power interruption when the power returns the unit will restart automatically at the previous function settings. * Anti-cold draft - If the ambient temperature is low and when the unit is turn on in heat mode; it will warm up prior to starting the fan operation to prevent a cold air blast to make people feel more comfortable. * Alarm – Unit has the capability to alert the user with an optional long distance alarm if there is any malfunction. * Extended heating can be achieved in ambient conditions as low as 5º F.


The 12,000 BTU KTIR series off-white front panel easily blends with room and ceiling design. The Decorative front panel is removable and replaceable so it makes it easier to maintain and keep clean.

* Decorative front panel fits on a 12,000 BTU KTIR Series Cassette Indoor Unit * The Unit’s off white decorative panel easily blends in with room and ceiling design. * The front removable panel for easy cleaning

KSIE | Outdoor Unit

Klimaire KSIE012-H220-O unit is integrated with DC Inverter technology enables variable compressor speed, reducing the power usage to the minimum while keeping the indoor temperature steady and constantly controls the dehumidification process for better indoor air Quality and comfort. The outdoor unit is equipped with base pan heater ensures proper defrost drainage and compressor heating belt for longevity during harsh winter conditions. These features allow the unit to operate in winter temperature as low as-5ºF.

* Pre-charged for up to 25 feet of copper tubing * Double cam twin rotary compressor * Auto defrost

Brand Klimaire
Model Number KSIE012-TIR12-H2
System Type Ductless Split System
Voltage/Phase/Frequency 208-230V/1Ph/60Hz
Cooling Capacity (Btu/h) 12000
Heating Capacity (Btu/h) 12000
HSPF (Heating Seasonal Performance Factor) 10.5
Energy Star Qualified No
MOP (Maximum Overcurrent Protection) 15
Refrigerant Liquid Line/Gas Line 1/4" / 1/2"
Max Refrigerant Pipe Length No
Low Ambient Operation (Cooling) 62~90 ºF
Low Ambient Operation (Heating) 32~86 ºF
Manufacturer Parts Warranty 1 Year
Manufacturer Compressor Warranty 5 Years
Wi-Fi Device Controlled No
IAQ (Indoor Air Quality) No
Indoor Unit Type Ceiling Cassette
