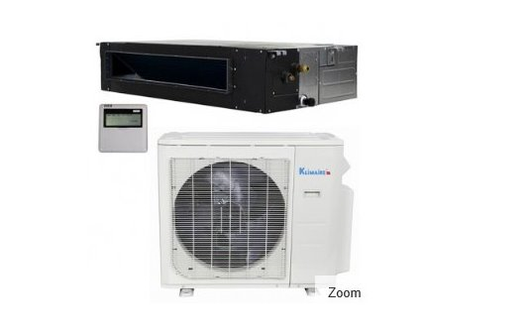

Klimaire 36,000 Btu 17 SEER AC Commercial Ceiling Ducted Heat Pump 15FT KIT Single Zone KSIR036-DIR036-H2

Item Description:

Notice:

Will include 15ft Linesets. If you need a 25FT Lineset kit it is $60 more for each Lineset Kit.

Please let us know so we can send you an invoice before Shipping.

KDIR036-H2G1 | Indoor Unit

The slim duct hide-away low profile fan coil unit can be mounted above a dropped ceiling or an attic space.  Minimal duct work is required which makes it very energy efficient, back air inlet is standard and the bottom is optional. The KDIR series has a central air appearance but is just as efficient as a mini-split unit. Very quiet operation with a compact design that is suitable where ceiling cavity is small, the exterior drain pump could be needed where there is not enough slope to drain. Unit is ideal to cool several zones, such as bedroom and bathroom in residences; foyer, bathroom, and bedroom combinations in commercial applications. A wired controller is attached to the unit that gives you several features to choose including anti-cold air, auto restart, sleep mode, follow me function and low ambient heating/cooling. These features assure to accommodate the needed space with precise cooling.

• Covers 2,400 Sq. Ft.
• Standard fresh air intake, easy air duct connection.
• Wired controller, independent dehumidification, anti-cold air draft, and sleep mode function
• Energy efficient – Having the look of a central air with the efficiency of a mini split unit which minimizes ductwork to nearby rooms.

KSIR | Outdoor Unit

KSIR036-H218-O is a compact outdoor unit that requires minimal ground space and can be mounted to a wall with a wall mounting bracket (see accessories). Pre-charged up to 25 feet of refrigerant piping. An automatic defrost prevents condensation from freezing and damaging the compressor. The built-in base pan heater ensures reliable operation in temperature as low as 5º F. A built-in crank case heater protects your compressor for a longer lifespan.

• Refrigerant leak detection
• Double cam twin rotary compressor
• Auto defrost, base pan heater plus crank case heater

Additional Features

• EER (Energy Efficiency Rating): 8.5
• Refrigerant lines sizes: Liquid side: 3/8" ; Gas side:  5/8"
• Anti-cold air function
• Full-function remote control and built-in  emergency MANUAL switch button
• Indoor unit has multi-refrigerant outlet pipes: left/right/rear
• ON/OFF programmable timer
• Optional wired wall thermostat can be plugged-in easily for commercial or non-remote control use
• Indoor unit is pre-vacuumed and outdoor unit is pre-charged

Applications

• Sunrooms
• Greenhouses
• Indoor gardens / hydroponic gardening
• Room additions to homes or offices
• Churches
• Fitness Centers
• Renovations
• Family rooms
• Wine cellars
• Garages/workshops

WHAT’S INCLUDED
Your Klimaire KSIR Ductless Mini-Split Inverter Air Conditioner Heat Pump System from Heat & Cool Comes With:

• KDIR036-H2G1 | Indoor Unit
• KSIR036-H218-O | Outdoor Unit
• Remote Control With Wall Bracket Holder
• Indoor Unit Wall Mounting Bracket
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Key Specifications

MANUFACTURER WARRANTY

• 1 year parts limited warranty
• 5 years compressor limited warranty
